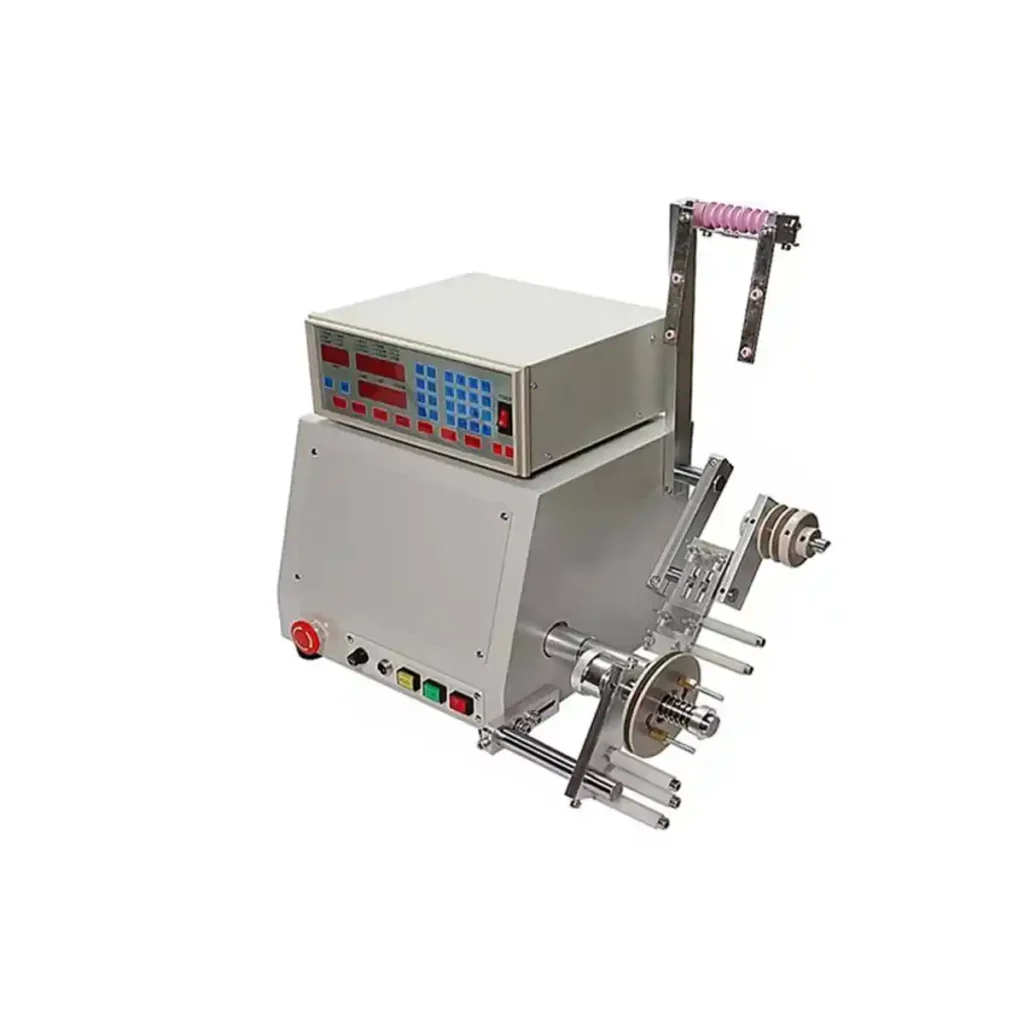

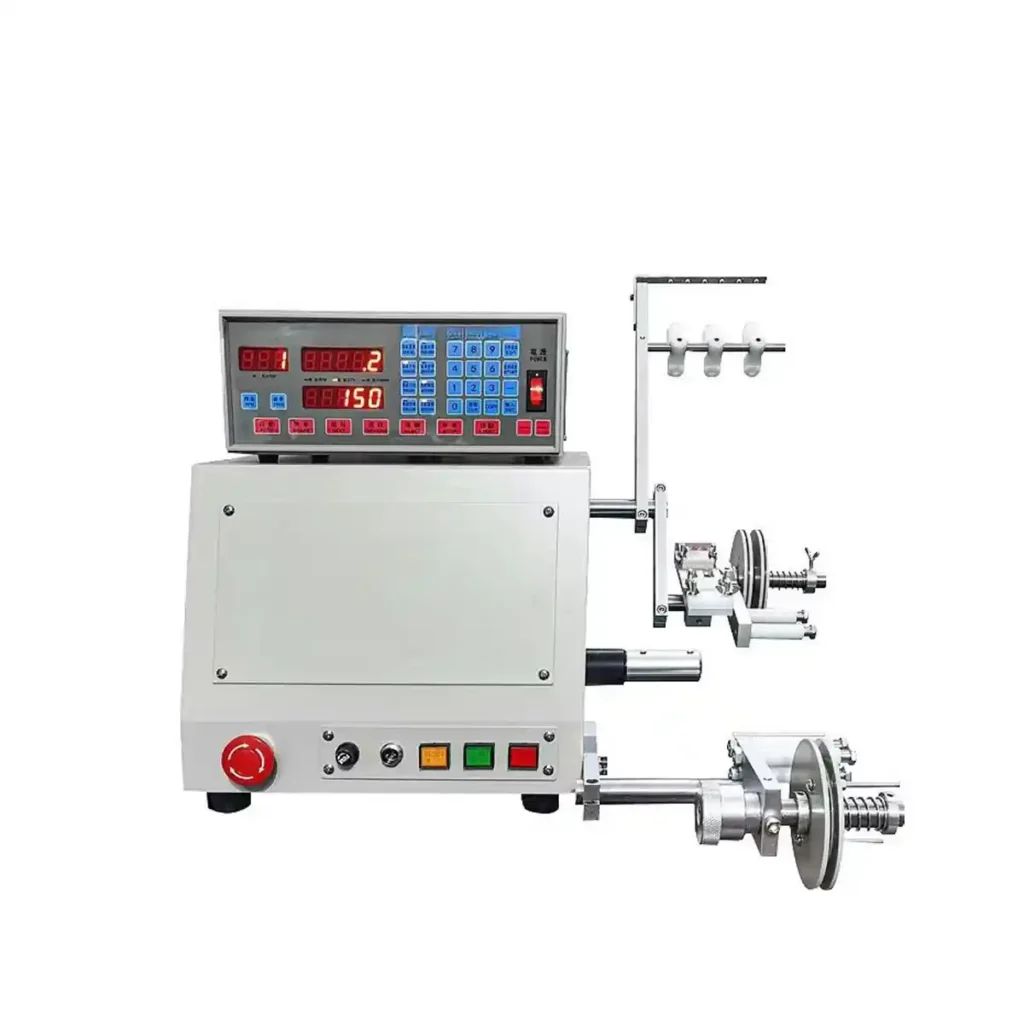

High Quality One Spindle Winding Machine

MODEL: FLM-CNC-1201

Mechanical Characteristics:

Easy Parameter Setting

1. Equipped with mature digital CNC controller with digital display & independent matrix keypad, users can preset winding turns, rotating speed, winding width and acceleration parameters directly.
2. Real-time digital screen shows remaining winding counts, convenient to monitor production progress, supports parameter memory after power off.
3. Stepper motor spindle control, speed range adjustable from 0~3000/6000rpm, stable speed for fine wire winding.

Stable & Durable Performance

1. Integral cast iron base body, solid structure, shock resistance & low vibration during high-speed operation, effectively improve winding uniformity.
2. Independent spindle layout, easy fixture replacement, adapt multi-type coil bobbin quickly.

High-Precision Winding & Wire Arrangement

1. Multi-Spec Adaptability: Adjustable fixtures and programmable settings support various shapes ( round, square, I-shaped) and sizes (1-50mm diameter).
2. Supports Multiple Wire Types: Enameled wire, triple-insulated wire, silk-covered wire, etc., with a typical range of 0.02-2.0mm diameter.

Cost-Effective Investment

1. Ideal for Small/Medium Batches: 50%+ cheaper than fully automatic machines, yet far more efficient than manual winding.
2. Energy & Material Saving: Optimized winding paths reduce wire waste, with low power consumption.

Typical Applications

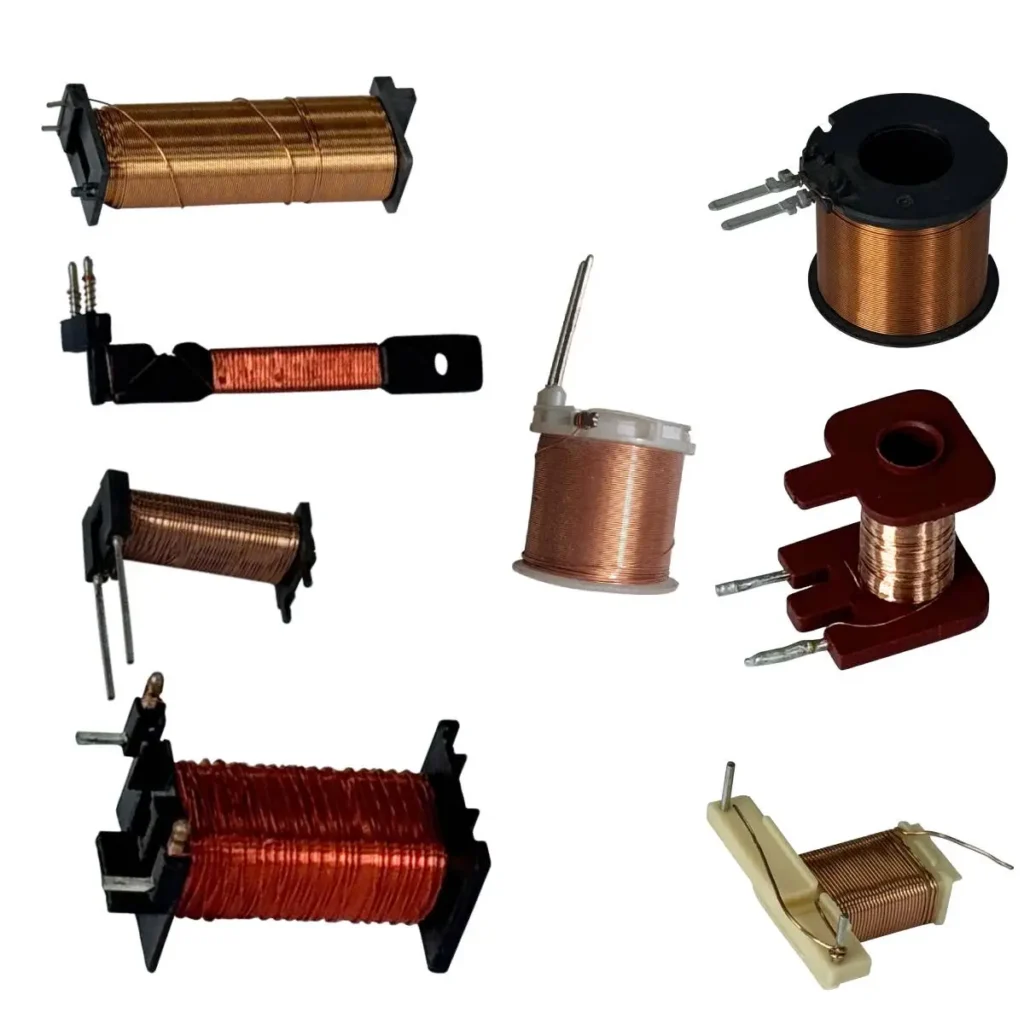

1. Electronics: High-frequency transformers, inductors, relay coils,etc
2. Industrial: Small motor stators/rotors, sensor coils,etc.

Specifications of the Coil Winding Machine:

Model	FLM-CNC-1201	FLM-CNC-1204
Number of spindles	1	4
Max. Speed	6000rpm	6000rpm
Main Motor Power	370W	370W
Applicable Wire Diameter	0.02-0.6mm	0.02-0.4mm
Max. Winding Diameter	70mm	70mm
Power Voltage	220V	220V
Size	L1000*W680*H1000mm	L1100*W1000*H1000mm
Weight	100kg	150kg

Main Brand of the Spare Parts in the Coil Winding Machine:

System/Mechanism	Brand/Feature
Control System	Independently developed third-generation controller, with high-speed response and high reliability optimized specifically for work efficiency, Operation interface switchable with touchscreen Taiwan’s well-known brand. The touchscreen programming interface is intuitive and easy to learn
Servo System	Panasonic servo motor and driver, with high-speed response and high accuracy.
Executive Agency	SMC & Koganei components with high stability and accuracy.
Sensor & Switch	Japan Keyence fiber optic sensor, Japan Omron photoelectric switch, Japan SMC magnetic switch.
Rail & Screw	The guide rails and screw rods of well-known brands in Taiwan are high-precision and highly reliable.
Host Body	Integrated casting, sturdy body, good stability, and seismic resistance.
Shaft Mechanism	Japanese NSK high-speed bearings and Japanese MITSUBOSHI belts. Integrated main bearing housing, precise concentricity, low noise, and low heat generation.

Summary of the Semi-automatic Single Spindle Winding Machine

The semi-automatic single spindle winding machine strikes a balance between speed, precision, and flexibility, making it ideal for SMEs upgrading their winding processes- especially for multi-variety, small-to-medium batch production.
