Coil Tape Wrapping Machine | Up to 300 RPM

FLM-BJ-0002

Mechanical Characteristics:

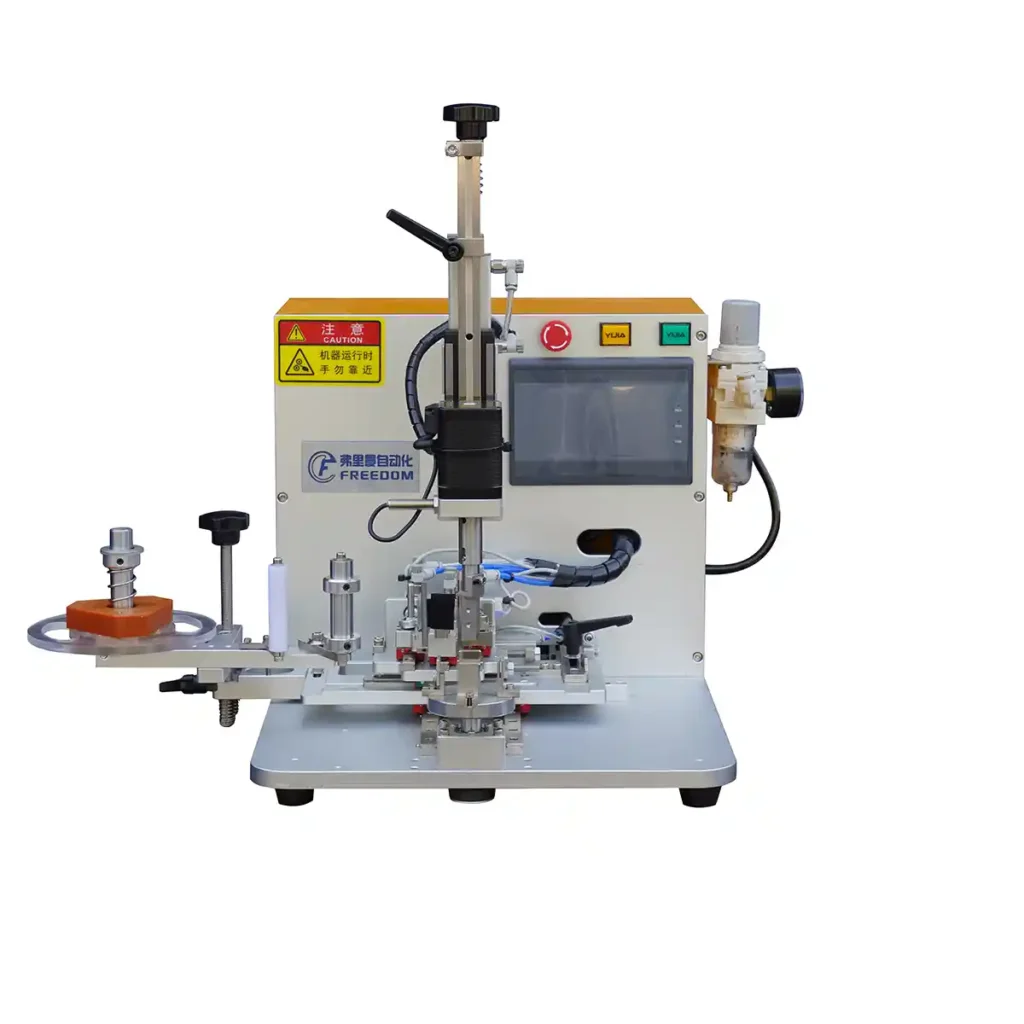

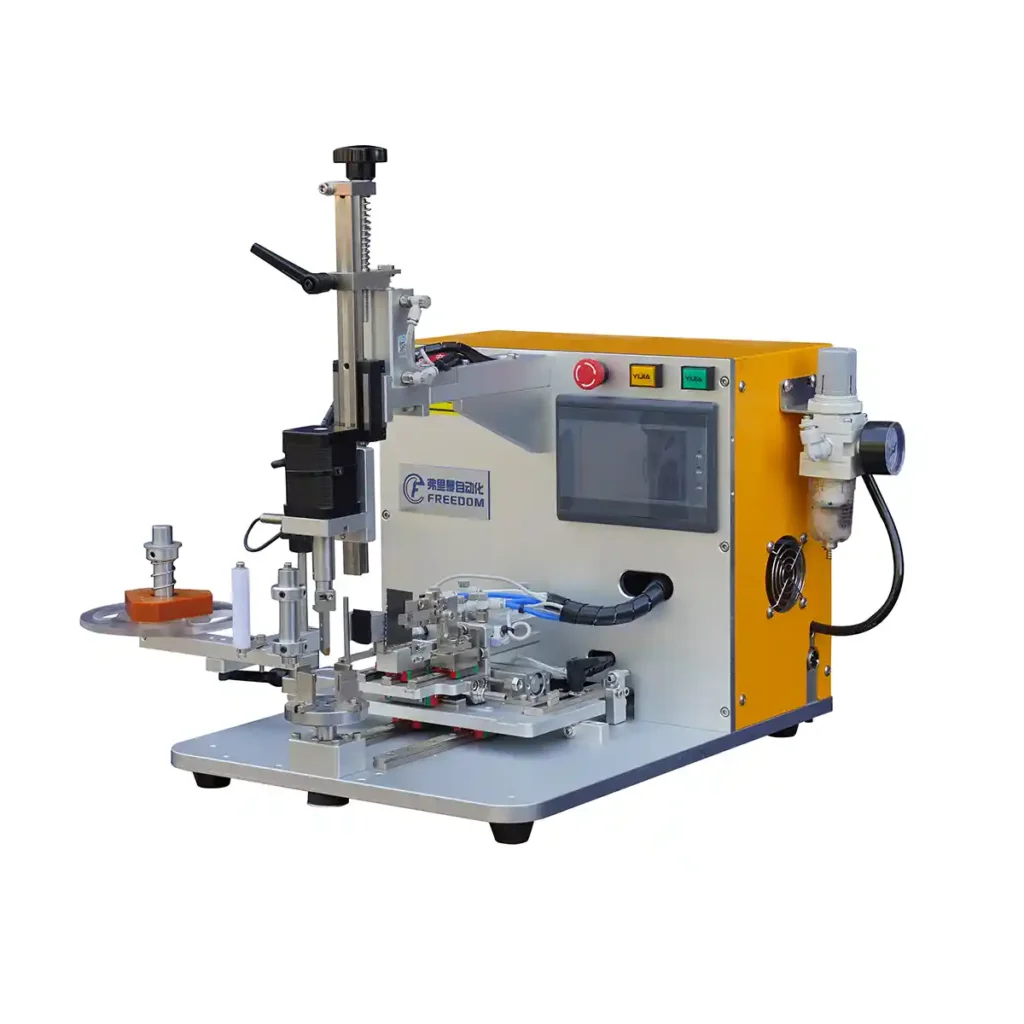

The Precision Coil Tape Wrapping Machine is designed for insulating and wrapping coils, transformers, inductors, and other electronic components. Its core characteristics include:

Easy Parameter Setting

Equipped with industrial touch screen HMI control panel, all wrapping parameters (wrapping laps, wrapping speed, tape feed length) can be set directly on screen. Parameter data is automatically saved after power failure, easy operation and short learning cycle for workers.

High-Precision Wrapping

Tension Control: Adjustable tension system ensures even tape application, preventing over-tightening or looseness.
Accurate Positioning: Fixtures or guides secure the coil for consistent taping, ideal for precision electronics.

Versatile Adaptability

Multi-Size Compatibility: Adjustable tape width (3mm-40mm) and coil diameter (via interchangeable fixtures).
Supports Various Tapes: Works with PVC, Mylar, Polyimide (PI), and other insulating materials.

Efficiency & Stability

Medium-to-High Speed: Typically processes 20-40 coils per minute (depending on tape layers and operator skill).
Low Failure Rate: Simple mechanical structure ensures easy maintenance and long-term reliability.

Safety & Eco-Friendliness:

Safety Features: Emergency stop button, protective cover, and other safeguards against mishandling.
Minimal Waste: Automatic tape cutting reduces material waste, some models support scrap recycling.

Cost-Effectiveness

Budget-Friendly: Lower price than fully automatic machines, ideal for small/medium batches or startups.

Specifications of the Tape Wrapping Machine:

Model	FLM-BJ-1001	FLM-BJ-2001
Tape Width	<40mm	<50mm
Working Range	50mm	50mm
Control Accuracy	1/lap	0.5/lap
Wrapping Speed	60rpm	60rpm
Power Supply Voltage	220V
Size	L500W300H200mm	L400W380H570mm
Weight	30kg	40kg

FAQ

Q1: What kinds of tapes and coils can this wrapping machine handle?

A: It supports PVC, Mylar, Polyimide (PI) insulating tapes, tape width ranges 3mm–50mm based on models. By changing fixtures, it wraps inductors, transformers, solenoid coils and other electronic coils for insulation packaging.

Q2: How many coils can it wrap per minute?

A: Standard rotating speed is 60 RPM, actual output reaches 20–40 coils per minute. Real efficiency depends on wrapping layers, tape material and operator proficiency.

Is it friendly for new workers without experience?

A: Yes. Industrial touchscreen HMI controls all parameters such as wrapping cycles, speed and tape feeding length. Parameters are saved automatically after power cut. Workers can get skilled within 10–20 minutes.

Q4: Will the tape be too tight or loose during wrapping?

A: Equipped with adjustable tension control system to keep uniform tape tension. Positioning fixtures lock coils firmly to prevent shifting, so wrapping stays neat and consistent every time.

Q5: What daily maintenance does this machine need?

A: Simple mechanical structure with low failure rate. Daily work only includes cleaning leftover tape scraps and checking fixture tightness regularly, no complex professional maintenance required.
