Overview

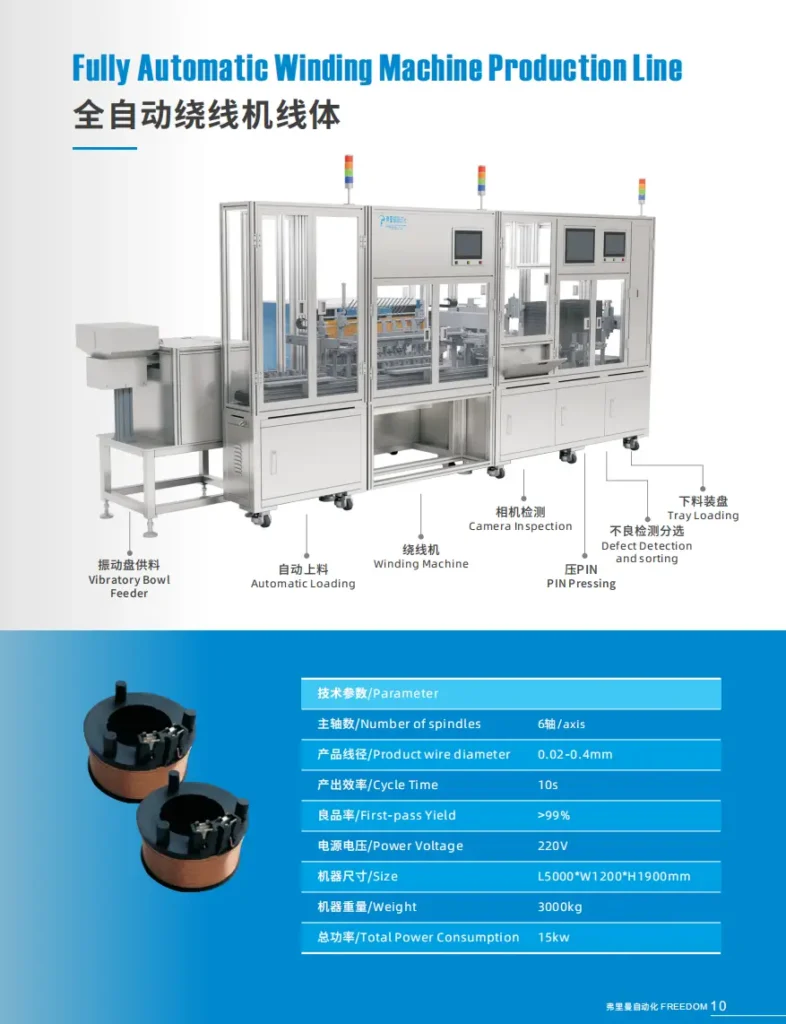

Fully Automatic Coil Winding Machine Production Line is a fully automated inline manufacturing system integrating vibratory bowl feeding, automatic loading, 6‑spindle winding, camera inspection, PIN pressing, defect detection & sorting and tray loading. Designed for high‑precision coil production, it supports wire diameter 0.02‑0.4 mm, delivers a 10‑second cycle time and achieves over 99% first‑pass yield. This turn‑key line eliminates manual handling between stations, ensuring consistent quality and high throughput for electromagnetic coil manufacturers.
FAQ
Q1: How many spindles does this fully‑automatic winding production line adopt?
A1: It is configured with 6 spindles, designed for continuous mass‑production of electromagnetic coils.
Q2: What range of wire diameter can this production line process?
A2: It is suitable for wire diameter from 0.02 mm to 0.4 mm, covering most fine enameled wire for relay and solenoid coils.
Q3: What is the cycle time and first‑pass yield of this line?
A3: Cycle time is 10 seconds per piece, and the first‑pass yield can reach more than 99% under qualified raw materials and correct fixtures.
Q4: What processing stations are included in this full‑automatic line?
A4: Complete stations: vibratory bowl feeder, automatic loading, winding machine, PIN pressing, camera inspection, defect detection and sorting, tray loading. It realizes full‑process automatic production without manual intervention.
Q5: What are the power, dimension and weight parameters for site layout?
A5: Power supply 220V, total power consumption 15 kw; overall dimension L5000*W1200*H1900 mm, machine weight 3000 kg. Sufficient workshop space should be reserved for installation and maintenance.
Q6: Can this production line be adapted for different coil bobbin specifications?
A6: Yes. The tooling fixtures can be customized and replaced to match different bobbin types for various coil products.
