Overview

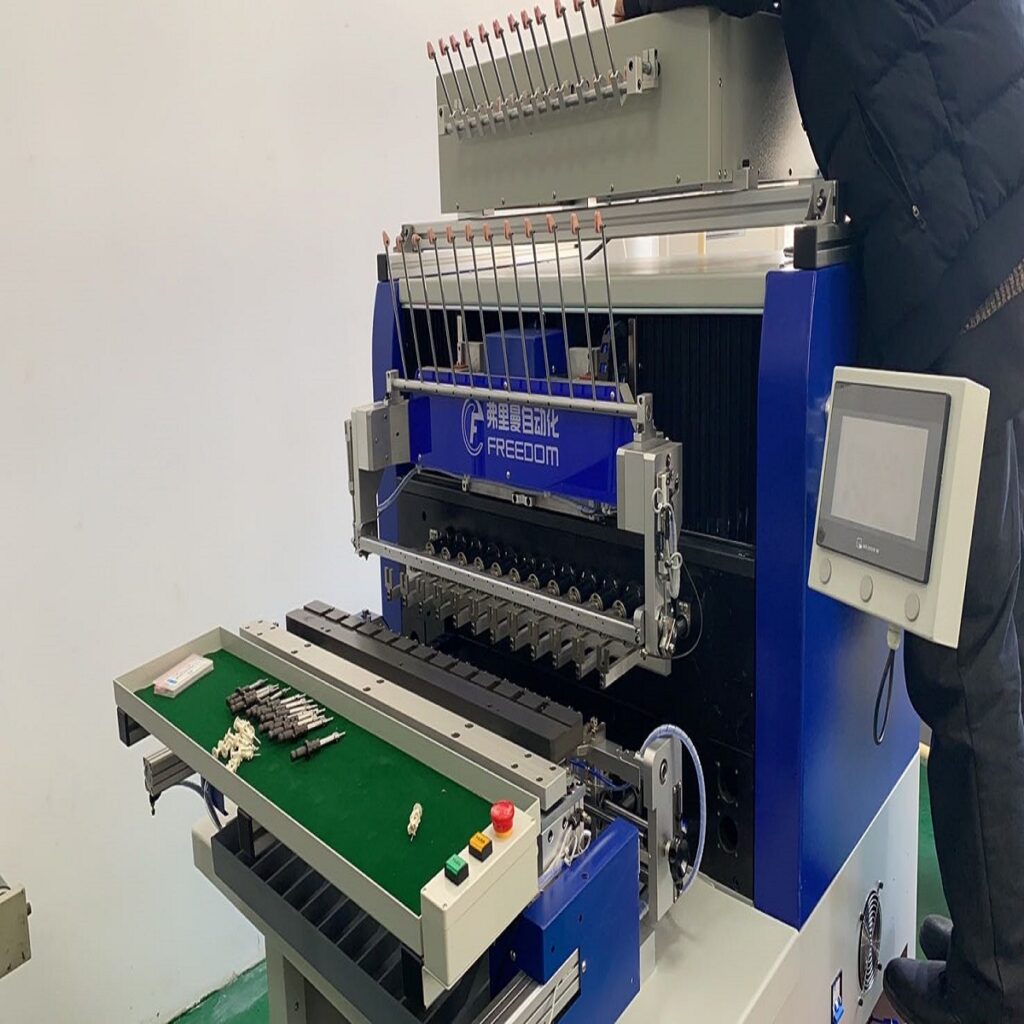

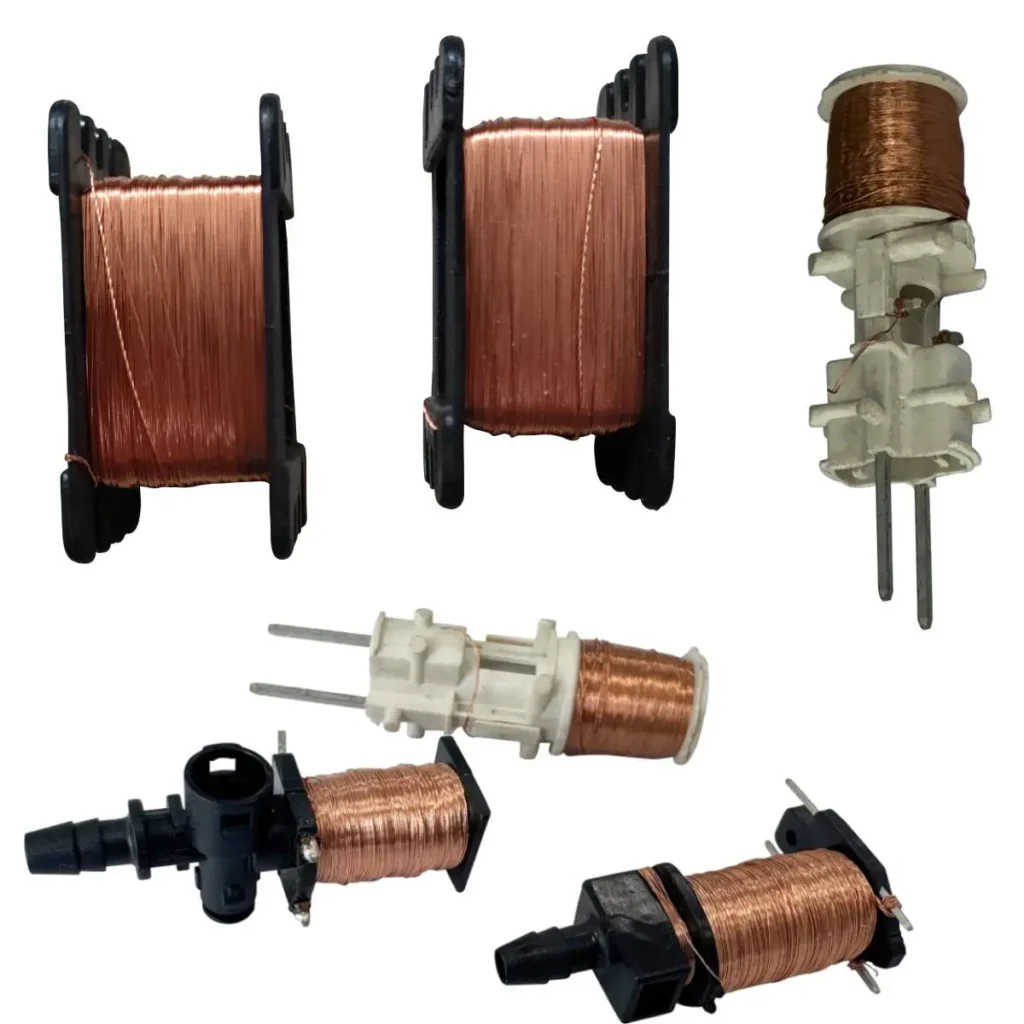

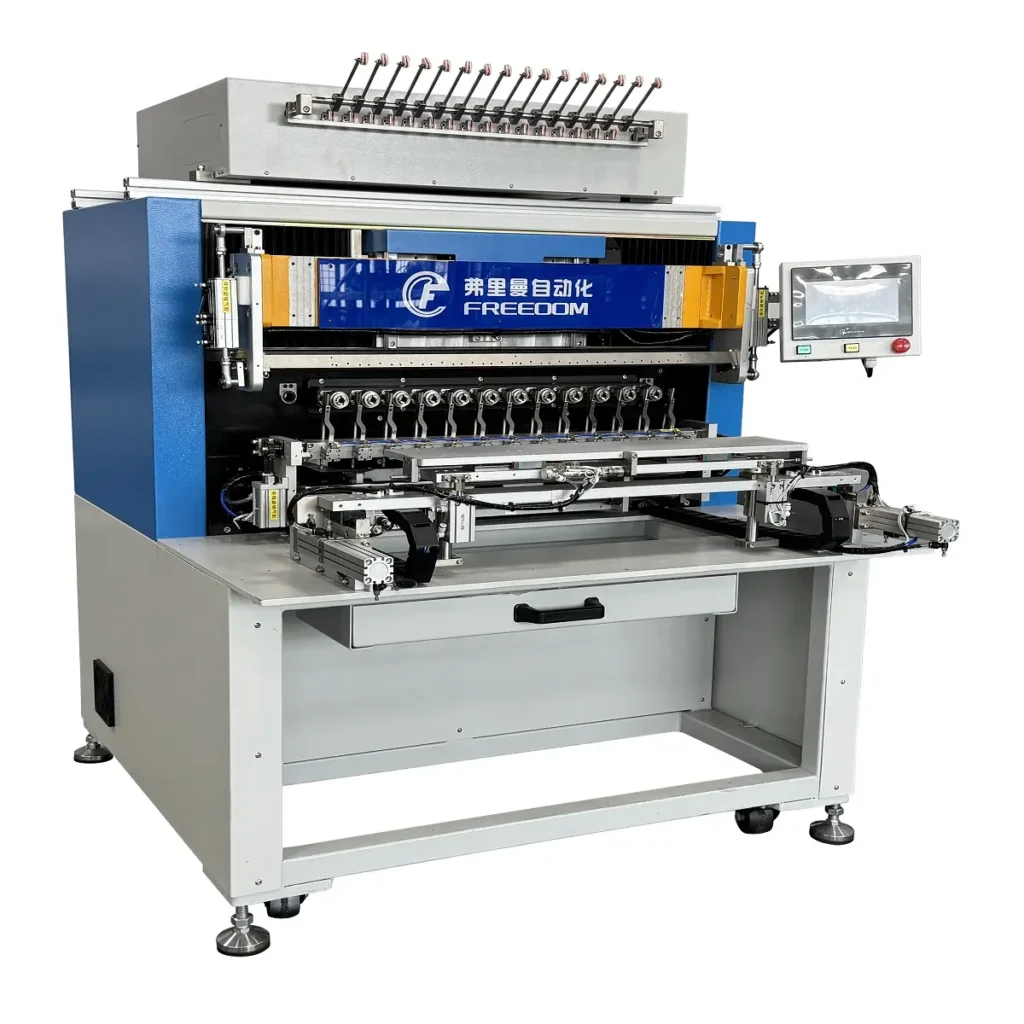

FLM‑6600‑JX is a multi‑spindle automatic twisting and coil winding machine with maximum 16‑spindle capacity. It achieves ±0.05° repeatability with servo‑driven motion system and premium imported components. This unit supports vertical and horizontal terminal winding, visual touch‑screen programming, power‑off memory and programmable twisting parameters. Optional auxiliary mechanisms, bilingual HMI, safety protection and remote network monitoring make it suitable for mass‑production of solenoid, relay and other precision electromagnetic coils.
Mechanical Characteristics:
High Precision & Stability:
- Servo motors ans stepper motors ensure precise control of winding / twisting operations (± 0.05°repeatability）
- Premium components like NSK/ NTN bearings (Japan) and Taiwanese screws enhance durability.
Automated Production Efficiency:
- Multi-spindles configuration (MAX16 spindles) enables simultaneous twisting/ winding operations
- Programmable twist parameters: length, speed, and strand count (3/5/7 wires)
- Smart control system with auto-reversing, speed adjustment, and power-off memory.
Safety and Ease of Operation:
- Equipped with safety features such as emergency stop switches and safety light curtains to prevent operational accidents.
- User-friendly HMI with support both Chinese and English interfaces, ensure simplicity and ease of training
Intelligent Function Expansion:
- Advanced models support network connectivity remote monitoring, enabling real-time fault diagnosis and production data management.
- Automatic tape replacement alerts minimize downtime and optimize operational efficiency.
Optional Mechanism
1. Pneumatic Shear
2. Wire Pressing Mechanism
3. Tension Attenuation Mechanism
Main feature:
AC servo motor is used for the main shaft and each dimension, and the running speed and positioning speed of each axis are fast and accurate
It can realize the terminal winding, and the terminal winding can be vertical and horizontal
Replacement of winding type: just call the programmed program in the machine and replace the fixture
Thread processing method: a: pull off or cut off the blade; b: the waste wire falls into the waste wire groove
Programming method: touch screen programming, providing human-computer interactive visual teaching system to achieve WYSIWYG programming effect
Main configuration:
| System/mechanism | Institutional characteristics |
|---|---|
| Control System | Independently developed third-generation controller, with high-speed response and high reliability optimized specifically for work efficiency, Operation interface switchable with touchscreen Taiwan’s well-known brand. The touchscreen programming interface is intuitive and easy to learn |
| Servo System | Panasonic servo motor and driver, with high-speed response and high accuracy. |
| Executive Agency | SMC & Koganei components with high stability and accuracy. |
| Sensor & Switch | Japan Keyence fiber optic sensor, Japan Omron photoelectric switch, Japan SMC magnetic switch. |
| Rail & Screw | The guide rails and screw rods of well-known brands in Taiwan are high-precision and highly reliable. |
| Host Body | Integrated casting, sturdy body, good stability, and seismic resistance. |
| Shaft Mechanism | Japanese NSK high-speed bearings and Japanese MITSUBOSHI belts. Integrated main bearing housing, precise concentricity, low noise, and low heat generation. |
