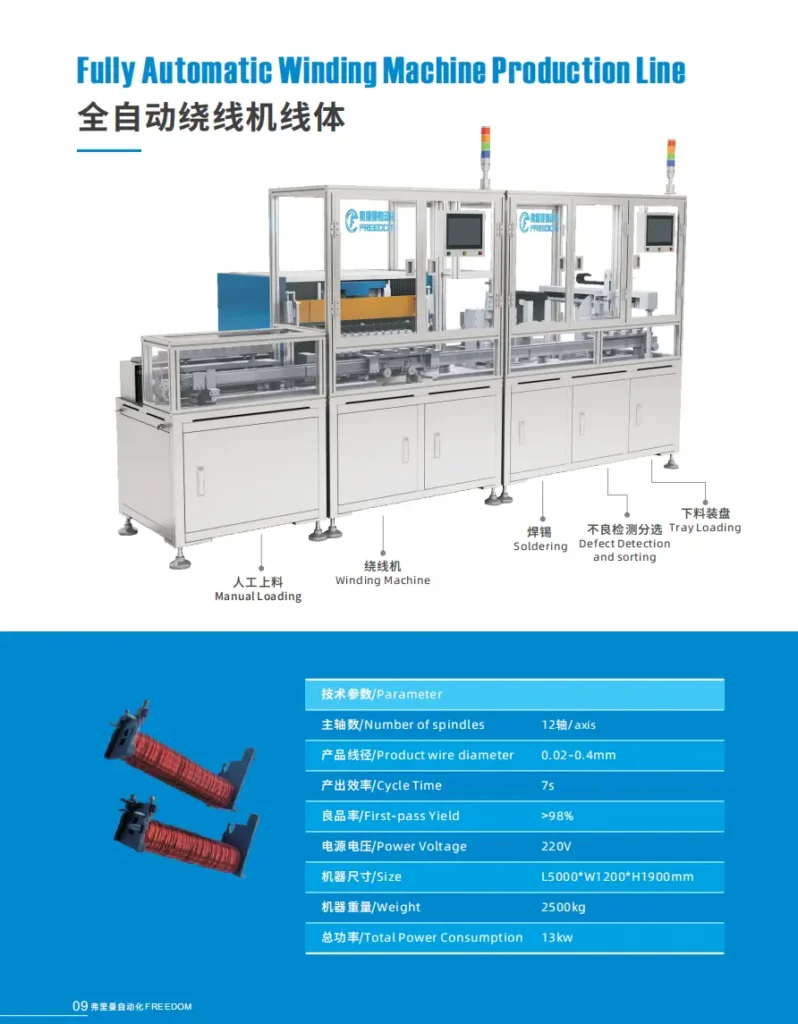

Fully Automatic Coil Winder Production Line is a complete turn‑key inline production system integrating manual loading, multi‑spindle winding, soldering, defect detection & sorting and tray loading. Equipped with 12‑spindle design, it handles wire diameter 0.02‑0.4 mm, short 7‑second cycle time and over 98% first‑pass yield. This full‑automatic line realizes continuous mass production of coils, greatly reducing manual intervention and improving production consistency for electromagnetic component manufacturers.
FAQ
Q: How many spindles does this automatic winding production line adopt?
A: The production line is equipped with 12 spindles, which can complete multi-station winding processing at the same time to improve batch production efficiency.
Q: What wire diameter can this winding line process?
A: It supports enameled wire with wire diameter ranging from 0.02mm to 0.4mm, which is suitable for the production of small precision ignition coils and solenoid coils.
Q: What is the production cycle time of the fully automatic winding line?
A: The single product cycle time is only 7 seconds, matching high-speed mass production requirements of electronic component factories, and the first-pass yield can reach more than 98%.
Q: What complete workflow does this production line integrate?
A: The whole line covers manual loading, automatic winding, soldering, defect detection & sorting, finished product tray loading, realizing full-process automated production without intermediate manual transfer.
Q: What are the overall size and power parameters of the winding production line?
A: Overall dimension L5000*W1200*H1900mm, total power 13kw, power supply 220V, total weight 2500kg, easy for factory layout and installation.
Q: Is the winding production line customizable according to coil specifications?
A: Yes. We can adjust spindle quantity, wire range, station layout and detection functions according to your coil types, production capacity demands and workshop environment.
