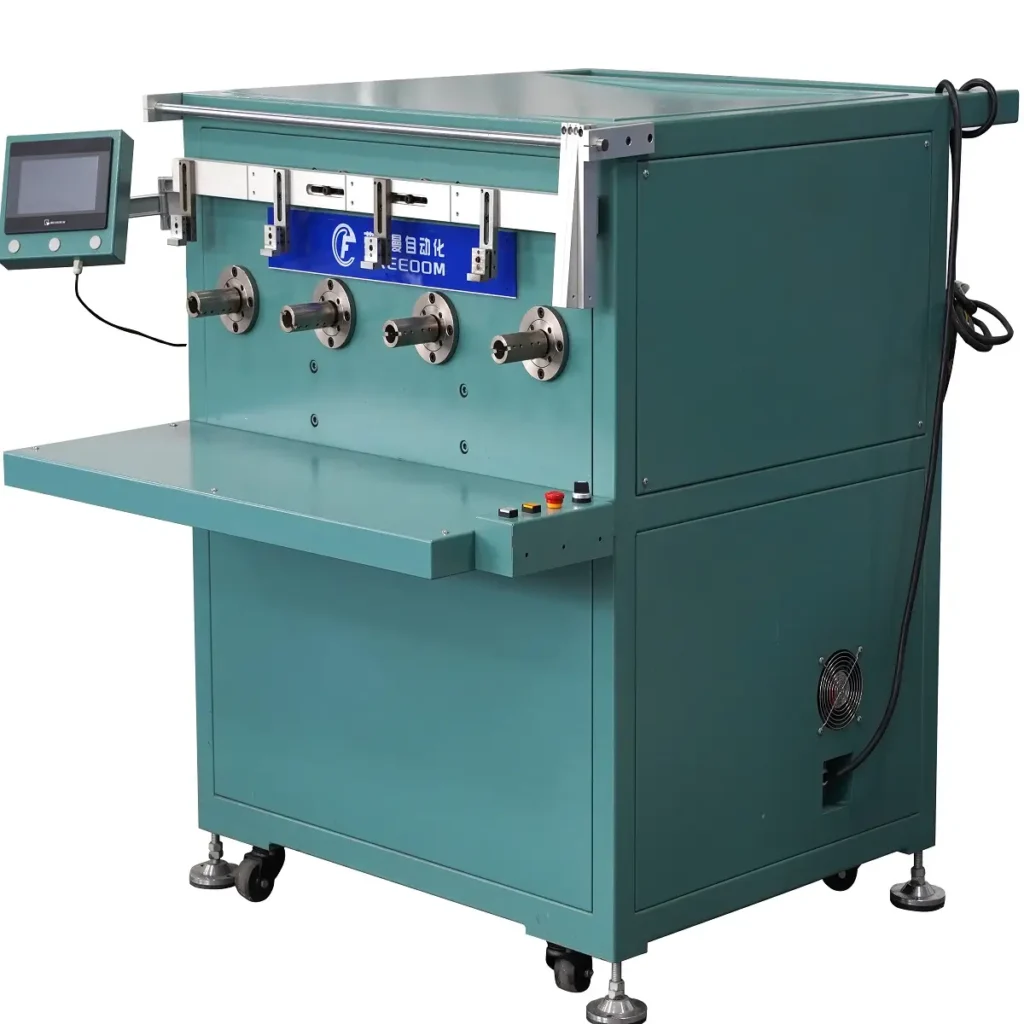

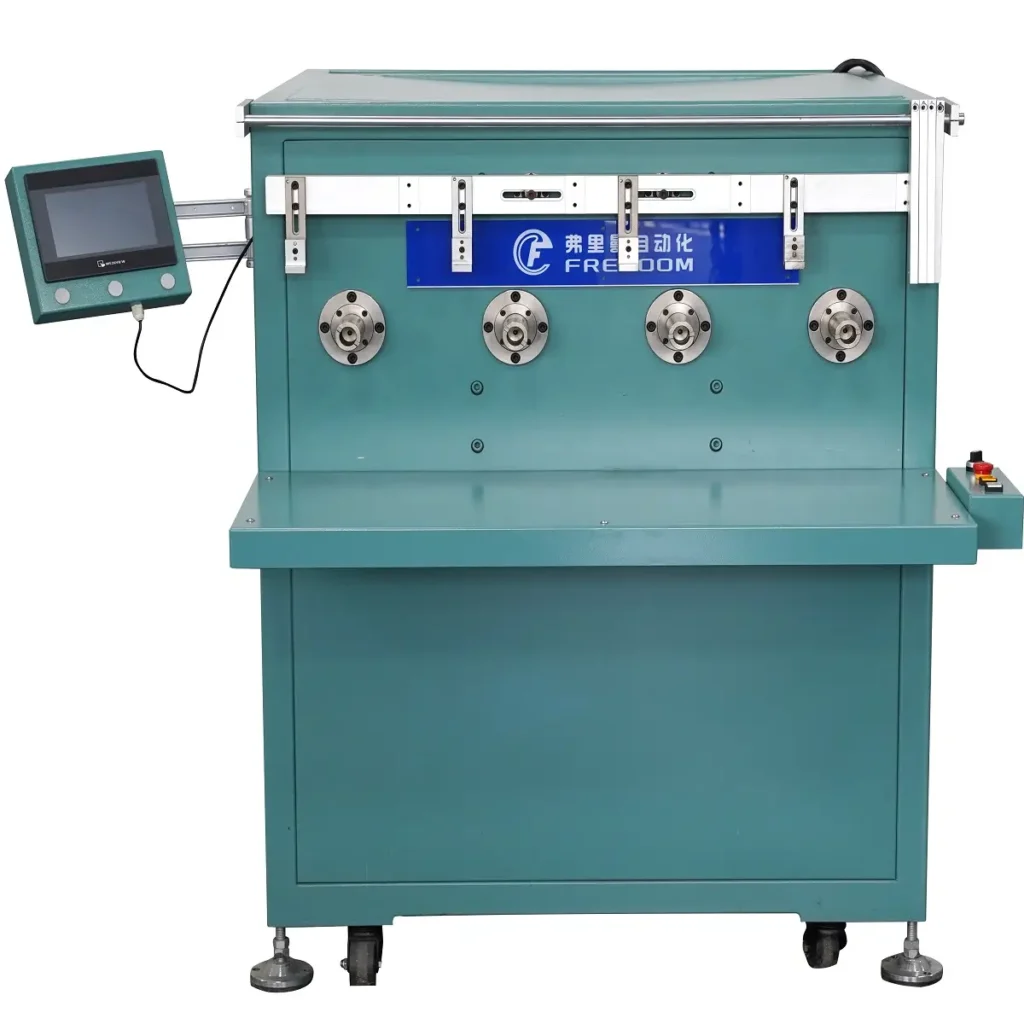

MODEL: FLM-DJJ-9004
Mechanical characteristics:
Enhanced Mechanical Structure:
- Heavy-duty frame design: Reinforced steel construction with 50% increased load-bearing capacity compared to standard models
- Extended axis spacing: 400-600mm adjustable work area to accommodate large components.
- High-torque rotary system: 20Nm continuous torque output with 50Nm peak capacity.
Multi-Axis Synchronized Control:
- Independent 4-axis servo system: Each axis equipped with 3kW servo motor
- Precision gear transmission: Backlash ≤ 0.5° for accurate angular positioning
- Coordinate motion control: Supports complex spatial winding trajectories

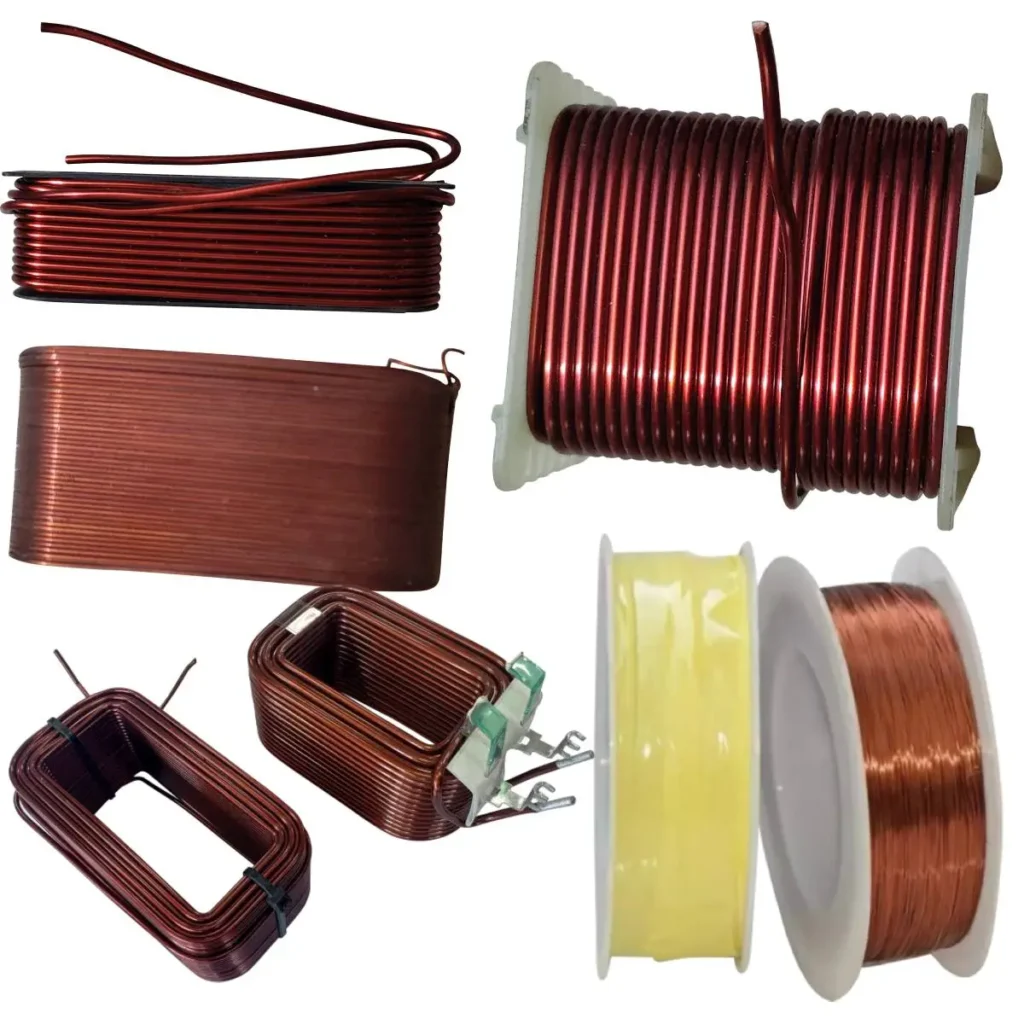

High-Power Winding Capability
- Heavy-duty spindle: Maximum 10kg load capacity at 2000rpm.
- Oversized wire handling：Accommodates 0.5-3mm diameter conductors
Industrial-Grade Durability
- IP54 protection rating: Suitable fro harsh industrial environments
- Wear-resistant guides: 50,000-hours service life under heavy loads.
Safety and Ease of Operation:
- Equipped with safety features such as emergency stop switches and safety light curtains to prevent operational accidents.
- User-friendly HMI with support both Chinese and English interfaces, ensure simplicity and ease of training
- Select models offer manual automatic mode switching for convenient debugging and single-piece production.
Main feature:
The equipment incorporates a quad-axis synchronous drive system with wide-spacing winding modules and high-torque output mechanism.
Main configuration:
| System/mechanism | Institutional characteristics |
|---|---|
| Control System | Independently developed third-generation controller, with high-speed response and high reliability optimized specifically for work efficiency. Operation interface switchable with touchscreen Taiwan’s well-known brand. The touchscreen programming interface is intuitive and easy to learn |
| Server System | Panasonic servo motor and driver, with high-speed response and high accuracy. |
| Executive Agency | SMC & Koganei components with high stability and accuracy. |
| Sensor & Switch | Japan Keyence fiber optic sensor, Japan Omron photoelectric switch, Japan SMC magnetic switch. |
| Rail & Screw | The guide rails and screw rods of well-known brands in Taiwan are high-precision and highly reliable. |
| Host Body | Integrated casting, sturdy body, good stability, and seismic resistance. |
| Shaft Mechanism | Japanese NSK high-speed bearings and Japanese MITSUBOSHI belts. Integrated main bearing housing, precise concentricity, low noise, and low heat generation. |
Specifications:
| Model | FLM-DJJ-9004 |
|---|---|
| Number of spindles | 4axis |
| Applicable Wire Diameter | 0.02-0.6mm |
| Max. Coil Outer Diameter | 240mm |
| Max. Speed | 3000rpm |
| Max. Winding Width | 150mm |
| Axis Stop Accuracy | ±0.5° |
| Power Supply Voltage | 220V |
| Size | L1200*W1200*H1400mm |
| Weight | 200kg |
