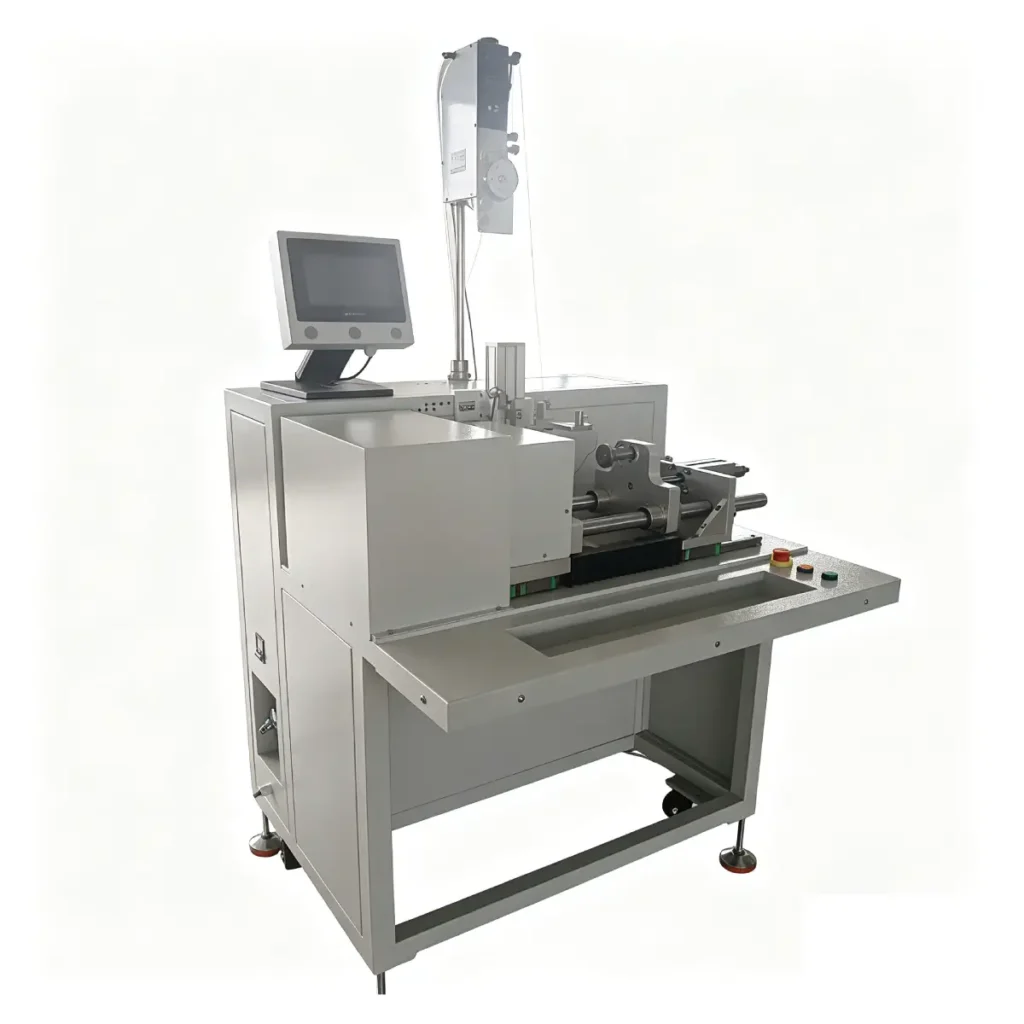

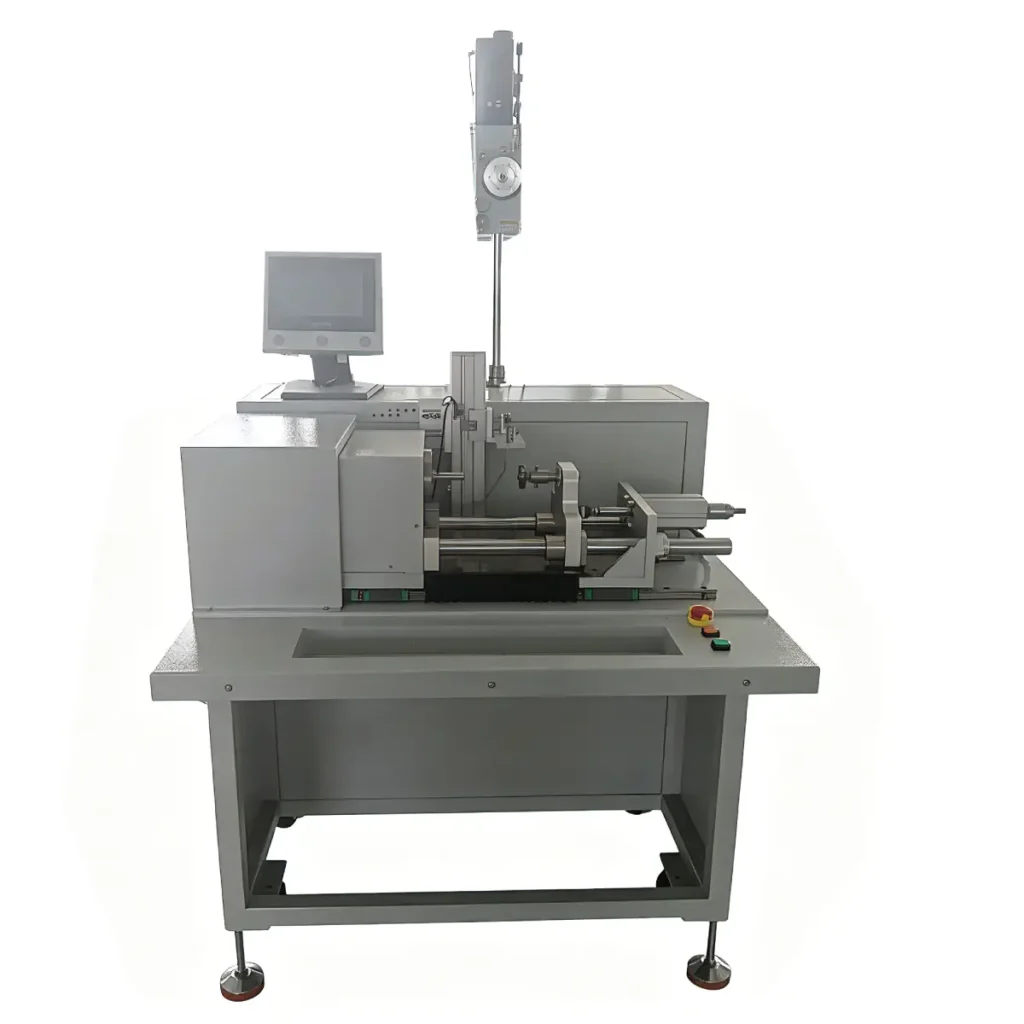

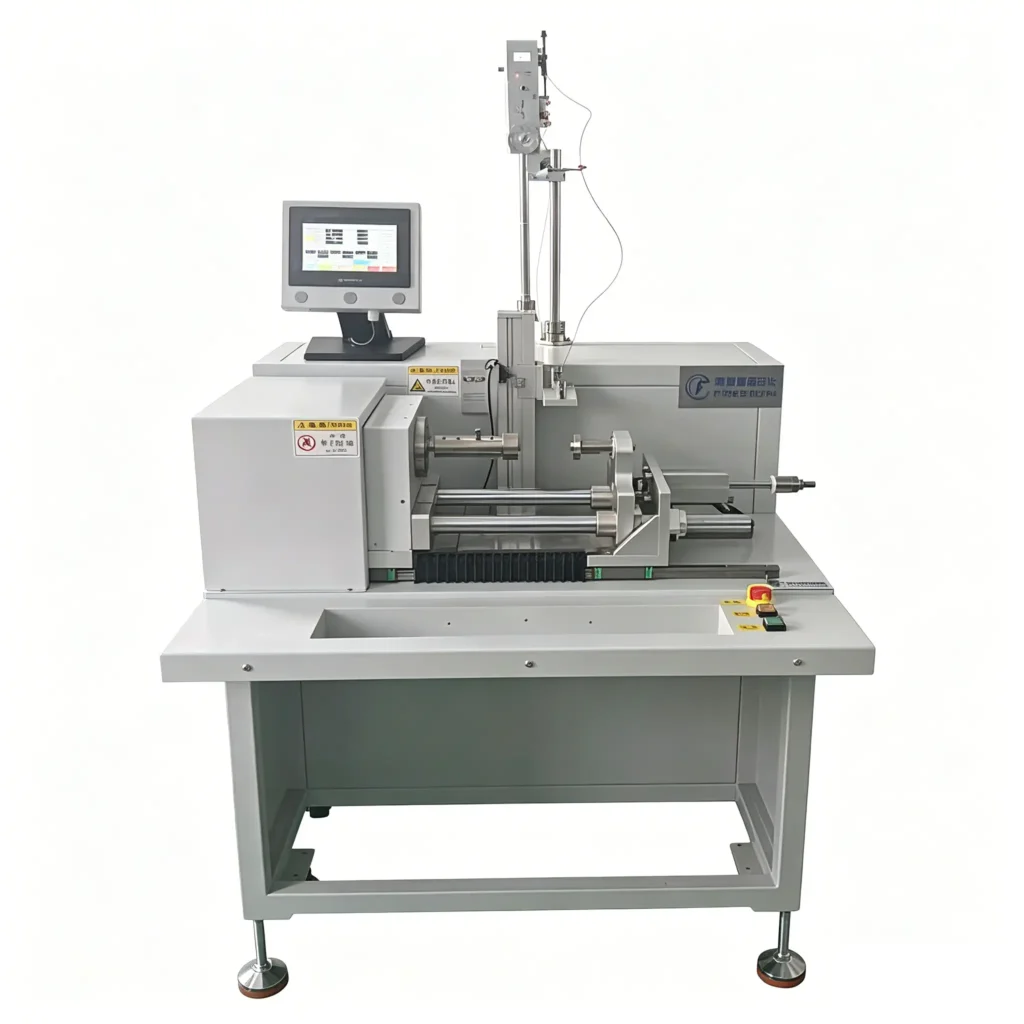

High Precision Reliable Floor Standing Wire Winding Machine

MODEL: FLM-FSEW-0001

Mechanical characteristics:

Ultra-High Precision Design:

1. 0.01mm-level motion control: Linear motor drive system
2. Nanoscale encoder: Position feedback resolution up to ±0.0005mm
3. Active temperature compensation: Eliminates accuracy impacts from ambient temperature changes

Compact Precision Design:

1. Bench-top structure: Small footprint(typically less than 0.7 m²),ideal for laboratory and workbench use.
2. Fully enclosed protective cover: Integrated dust-proof and splash-proof design ensures process cleanliness
3. Modular architecture: Quick-change winding heads, fixtures and other components.

Intelligent Operating System:

1. 7-inch touchscreen HMI: Graphical programming interface with visual parameter setting.
2. Process database: Stores 200+ winding process recipes
3. Remote monitoring interface: Supports PC program download and data acquisition.

Multi-Functional Winding Capacities:

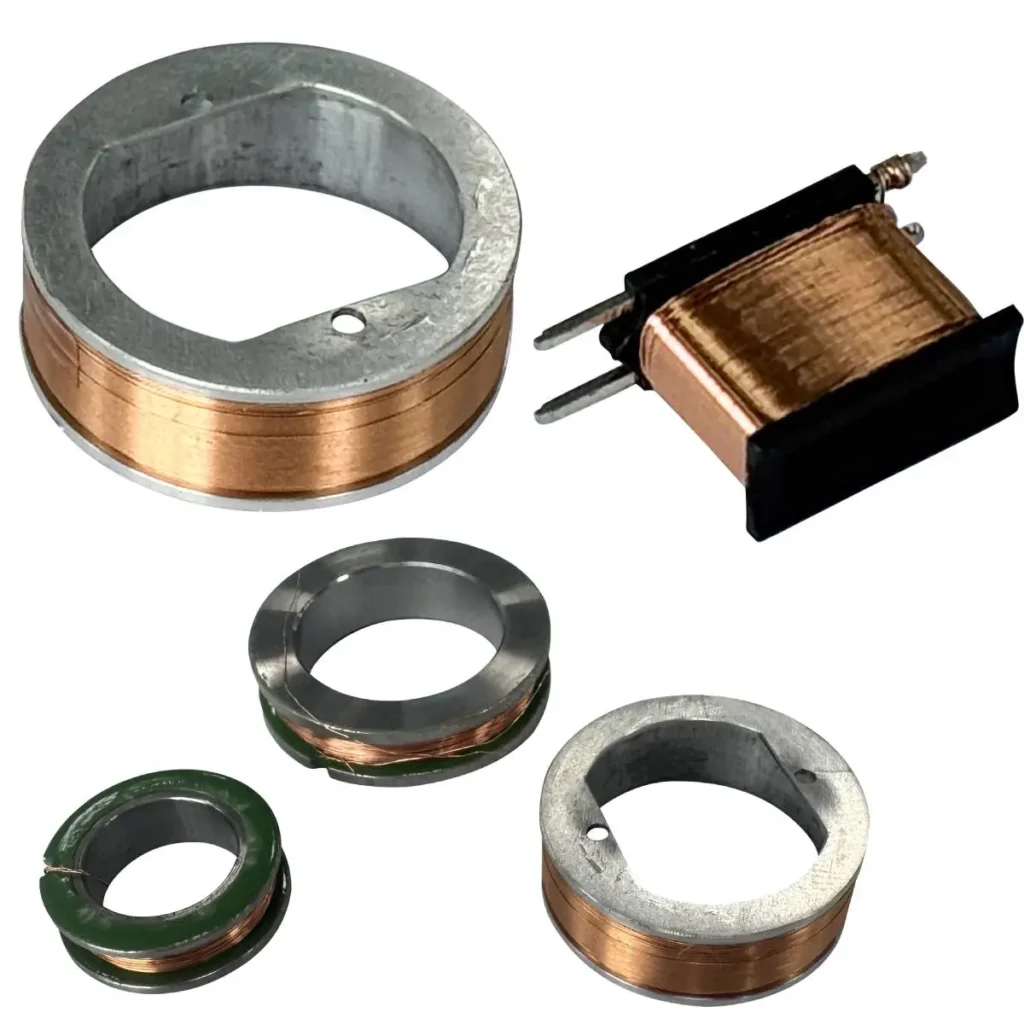

1. Special-shaped winding: Programmable for square, oval and other special shapes
2. Precision wire arrangement: Automatic arrangement accuracy ±0.01mm

Safety and Ease of Operation:

1. Equipped with safety features such as emergency stop switches and safety light curtains to prevent operational accidents.
2. User-friendly HMI with support both Chinese and English interfaces, ensure simplicity and ease of training
3. Select models offer manual automatic mode switching for convenient debugging and single-piece production.

Main feature:

Floor-standing precision wire winding machine is specialized equipment for high-precision coil manufacturing, typically employing servo drives and CNC systems. It is designed for automated winding if precision electronic components such as transformers, inductors, and motor windings.

Main configuration:

System/mechanism	Institutional characteristics
Control System	Independently developed third-generation controller, with high-speed response and high reliability optimized specifically for work efficiency, Operation interface switchable with touchscreen Taiwan’s well-known brand. The touchscreen programming interface is intuitive and easy to learn
Server System	Panasonic servo motor and driver, with high-speed response and high accuracy.
Executive Agency	SMC & Koganei components with high stability and accuracy.
Sensor & Switch	Japan Keyence fiber optic sensor, Japan Omron photoelectric switch, Japan SMC magnetic switch.
Rail & Screw	The guide rails and screw rods of well-known brands in Taiwan are high-precision and highly reliable.
Host Body	Integrated casting, sturdy body, good stability, and seismic resistance.
Shaft Mechanism	Japanese NSK high-speed bearings and Japanese MITSUBOSHI belts. Integrated main bearing housing, precise concentricity, low noise, and low heat generation.

Specifications:

Model	FLM-FSEW-0001
Number of spindles	1 axis
Applicable Wire Diameter	0.02-0.6mm
Max. Speed	3000rpm
Max. Winding Width	150mm
Axis Stop Accuracy	±0.5°
Power Supply Voltage	220V
Size	L750*W900*H1200mm
Weight	150kg
