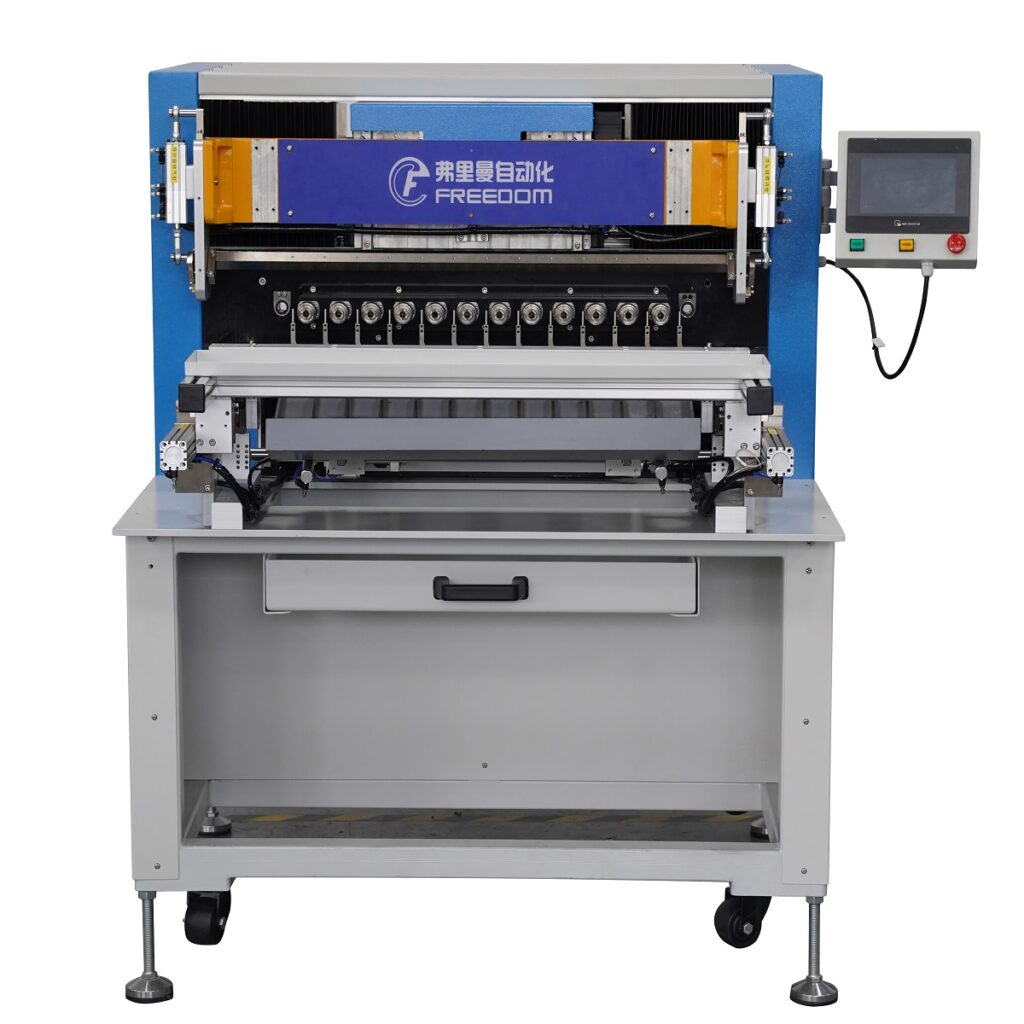

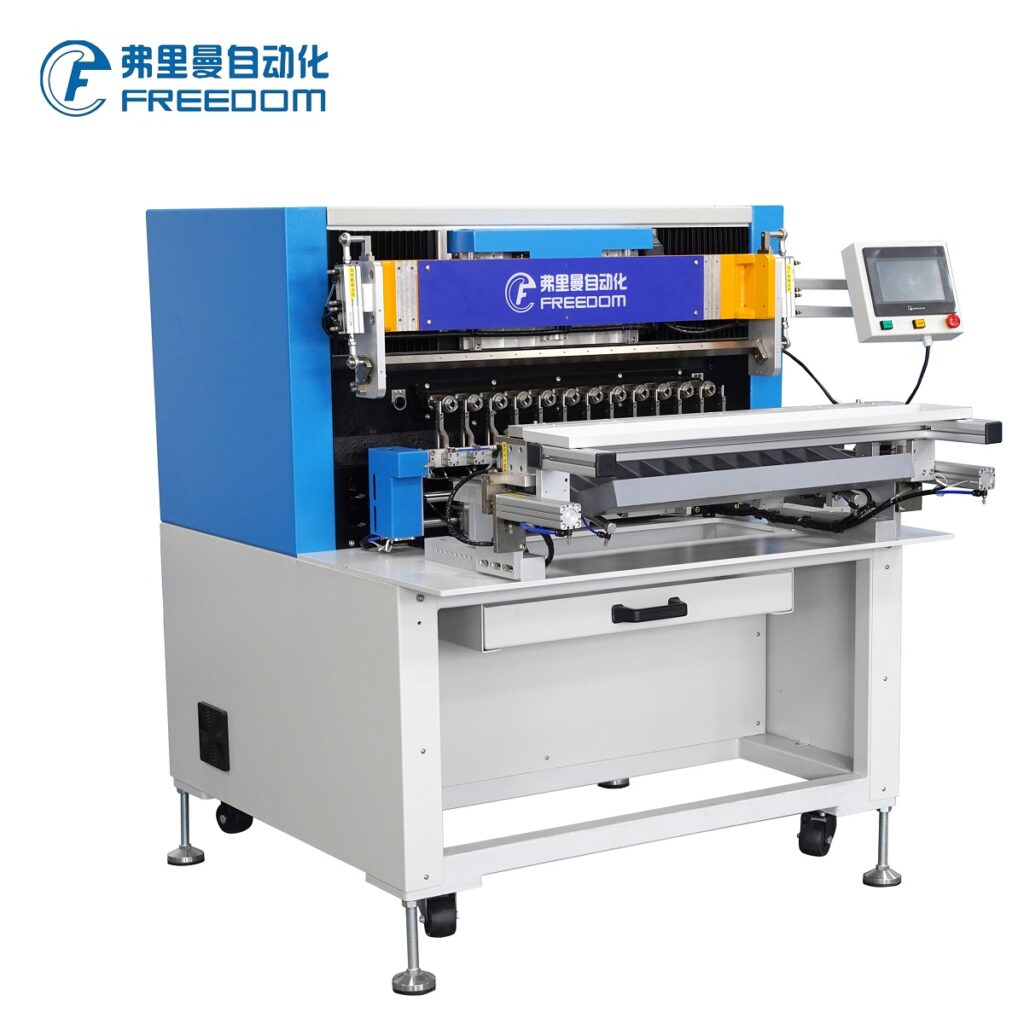

Multi Spindle Automatic Coil Winding Machine

Multi Spindle Automatic Coil Winding Machine | CNC Programmable Wound product

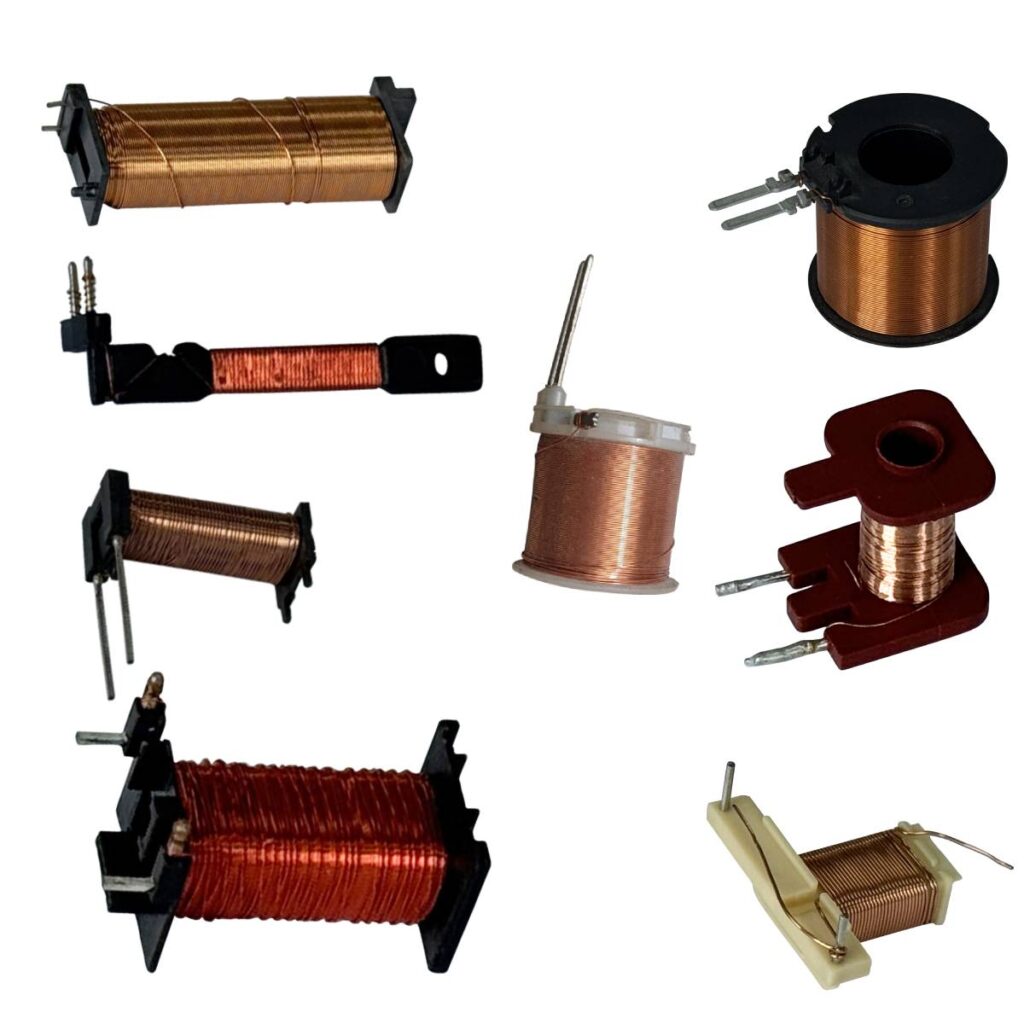

FLM‑6600 multi‑spindle automatic coil winding machine with 8/12/16 spindles, high‑speed 15000rpm, 0.02‑0.6mm wire diameter. Modular optional mechanisms, Panasonic servo, for mass‑production of solenoid, relay and transformer coils.

Mechanical characteristics:

Intelligent: Touchscreen operation, parameter memory

High-efficiency: Multi-axis synchronous winding , compatible with workshops

Easy to replace the model: Modular design for easy expansion and upgrades: Different optional mechanisms can be selected as needed to meet diverse and complex winding requirements. It also facilitates future equipment upgrades.

Safety: Upon machine malfunction, the system immediately triggers an alarm and initiates emergency shutdown. After troubleshooting, returning to the main interface automatically resets the alarm status.

Optional Mechanism

1. Tape Wrapping Mechanism

2. Twisted Wire Mechanism

3. Pneumatic Shear

4. Wire Pressing Mechanism

5. Tension Attenuation Mechanism

6. Double Line Wheel Winding Mechanism

Main feature:

Servo motors are used for the main shaft and each feed axis, ensuring high speed and high precision for both running and positioning.

The machine can perform terminal winding in both vertical and horizontal orientations.

To change the winding type: simply recall the pre-programmed settings from the machine and replace the fixture.

Wire handling: The wire can be pulled off or cut by a blade, with the waste wire automatically falling into the collection groove.

Programming: Touch-screen programming with an intuitive visual teaching system (WYSIWYG – What You See Is What You Get), making setup simple and direct.

Main configuration:

System/mechanism	Institutional characteristics
Control System	Independently developed third-generation controller, with high-speed response and high reliability optimized specifically for work efficiency, Operation interface switchable with WeinView touchscreen. The touchscreen programming interface is intuitive and easy to learn
Server System	Panasonic servo motor and driver, with high-speed response and high accuracy.
Executive Agency	SMC & Koganei components with high stability and accuracy.
Sensor & Switch	Japan Keyence fiber optic sensor, Japan Omron photoelectric switch, Japan SMC magnetic switch.
Rail & Screw	The guide rails and screw rods of Hiwin well-known brands in Taiwan are high-precision and highly reliable.
Host Body	Integrated casting, sturdy body, good stability, and seismic resistance.
Shaft Mechanism	Japanese NSK high-speed bearings and Japanese MITSUBOSHI belts. Integrated main bearing housing, precise concentricity, low noise, and low heat generation.

Model	FLM-6608	FLM-6612	FLM-6616
Number of spindles	8 axis	12 axis	16 axis
Distance Between Spindles	90mm	40mm	37mm
Max Coil Inner Diameter	37mm	30mm	20mm
Max. Speed	15000rpm	15000rpm	15000rpm
AC Servo Motor	Spindle: 750W	Spindle: 1500W	Spindle: 1500W
	X Axis: 400W	X Axis: 400W	X Axis: 400W
	Y Axis: 400W	Y Axis: 400W	Y Axis: 400W
	Z Axis: 400W	Z Axis: 400W	Z Axis: 400W
Axis Stop Accuracy	±0.5°	±0.5°	±0.5°
Applicable Wire Diameter	0.02-0.6mm	0.02-0.4mm	0.02-0.4mm
Max. Winding Diameter	55mm	50mm	38mm
Max. Winding Width	120mm	120mm	120mm
Guide Needle Axis Movement Speed	250mm/sec	250mm/sec	250mm/sec
Guide Needle Foot Wrapping Angle	0°,90°,-45°	0°,90°,-45°	0°,90°,-45°
Guide Needle Foot Wrapping Speed	Max 150rpm	Max 150rpm	Max 150rpm
Compressed Air Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Power Supply Voltage	220V	220V	220V
Power	2.5kw	4.5kw	4.5kw
Size	L1200W1200H1400mm
Weight	700kg	750kg	800kg

FAQ

Q: What spindle options are available for the FLM‑6600 winding machine?

A: FLM‑6600 series provides three models: FLM‑6608 (8 spindles), FLM‑6612 (12 spindles) and FLM‑6616 (16 spindles), all supporting max speed up to 15000rpm for high‑volume coil production.

Q: What wire diameter range can FLM‑6600 series handle?

A: FLM‑6608 supports 0.02‑0.6 mm wire, while FLM‑6612 and FLM‑6616 work with 0.02‑0.4 mm enameled wire for precision small‑size coil winding.

Q: Can I add extra functions to the FLM‑6600 machine?

A: Yes. Adopting modular design, it supports optional mechanisms including tape wrapping, twisted wire, pneumatic shear, wire pressing and other modules to meet diverse winding requirements.

Q: What brand key components are equipped on FLM‑6600?

A: It uses Panasonic servo motors, SMC/Koganei pneumatic parts, Keyence & Omron sensors, Hiwin rails and NSK bearings to guarantee long‑term stable operation.

Q: How to switch between different coil winding programs?

A: You can directly recall pre‑saved program settings on the touch‑screen, and only replace the corresponding fixture to finish model changeover quickly.
