Overview

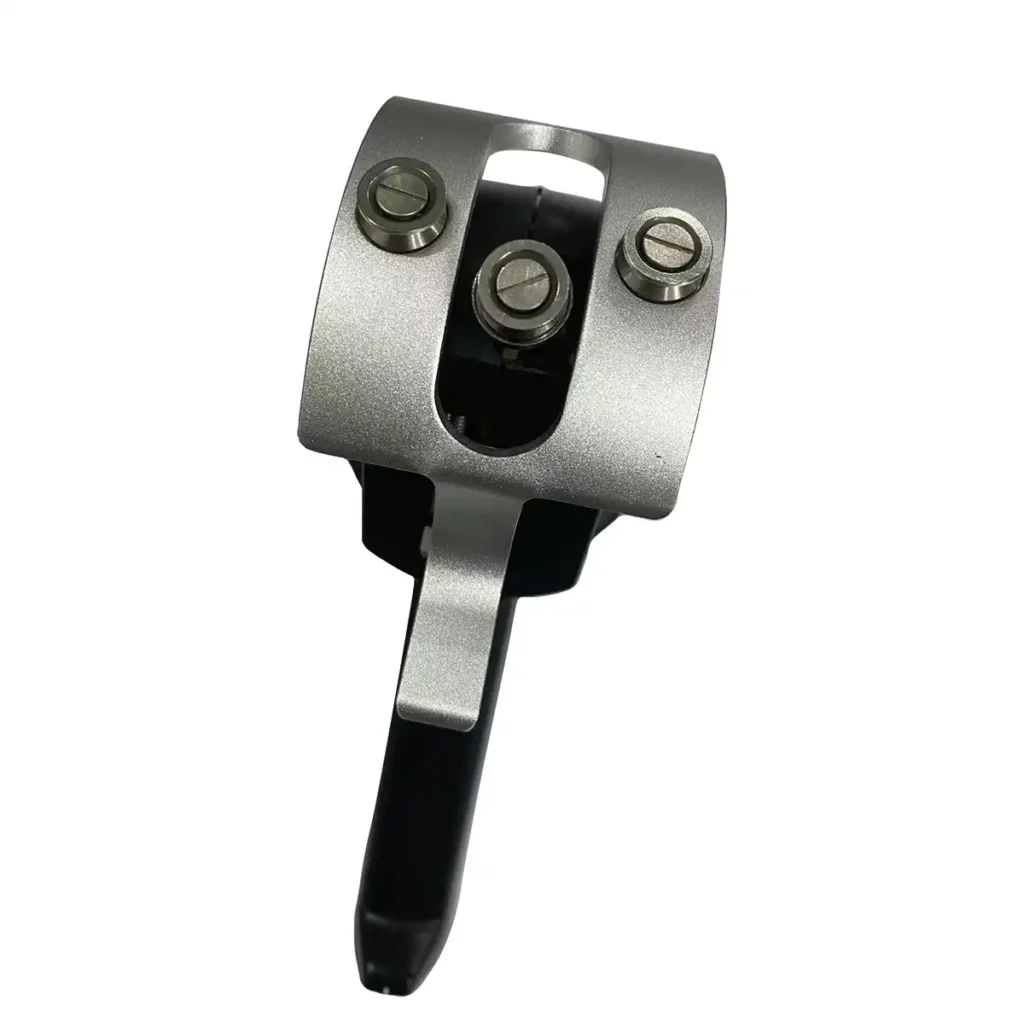

This handheld analog tension meter is a portable measuring instrument specially designed to test the real-time tension of enameled wire, copper wire, fiber wire and other thin wires during coil winding production. Widely matched with Freeman winding machines, magnetic tensioners and servo tensioners, it helps operators calibrate tension equipment accurately and ensure consistent winding quality of inductors, transformers and automotive coils. Adopting mechanical pointer dial design, it delivers intuitive readings without complex power supply, ideal for on-site workshop inspection and regular equipment calibration.
Core Features
- Portable Handheld Design Ergonomic integrated handle structure, lightweight and easy to hold. It can be carried anywhere in the production line for random tension sampling, no fixed installation required.

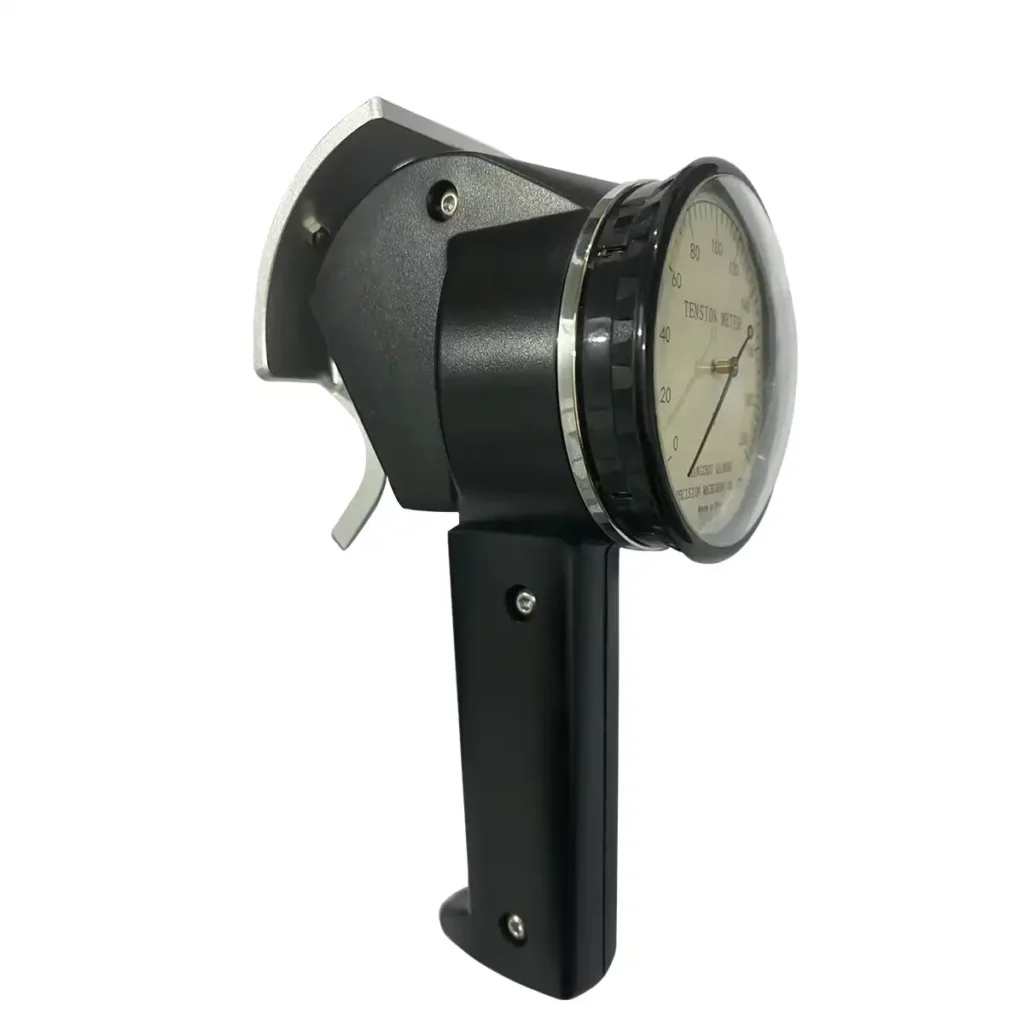

- High-precision Analog Dial Display Clear circular dial with scale range from 0 to 200, pointer feedback responds instantly to wire tension changes. The intuitive mechanical reading avoids electronic delay, perfectly suitable for fast on-site detection.
- Stable Mechanical Sensing Structure Built-in high-sensitivity spring sensing component, stable measurement performance and long service life. No battery charging or power wiring needed, zero power consumption for long-term continuous use.
- Wide Compatibility for Winding Wires Works for most commonly used wire gauges in coil manufacturing, including fine enameled wire, medium copper wire and litz wire. It is perfectly matched with magnetic tensioners and servo wire tensioners on Freeman winding machines for tension parameter calibration.
- Durable Industrial Housing Solid ABS shell with anti-drop and anti-collision performance, wear-resistant dial protective cover, adaptable to dust and vibration workshop production environments.
Main Application Scenarios
- Calibrate magnetic wire tensioners and servo tensioners before winding production
- Random inspection of wire tension during transformer & inductor mass winding
- Quality testing for automotive solenoid coils, relay coils and motor stator coils
- Laboratory wire tension testing and new winding process parameter verification
Usage Advantages
Compared with digital tension testers, this analog tension meter has lower purchase cost, no failure risk caused by power shortage, simpler operation and lower maintenance cost. It is an essential auxiliary measuring tool for electronic coil manufacturers to stabilize winding precision and reduce defective coil rate.
